Produktdetails:
|
Standardgröße: | Stärke: 0.08-0.6mm Breite: 0.7-8.0mm | Leiter Type: | Cu |
---|---|---|---|
Oberflächenbehandlung: | Verzinnt oder besonders angefertigt | Reinheit: | ≥99.98% |
Entwurfs-Standard: | GB/T 11091-2005, GB/T 2059-2008, GB/T 351-1995, GB/T 4340.1/2/3-1999, GB/T 228-2002 | Streckgrenze: | MPa <90 |
Produkt-Art: | Verbundenes Band | Produkt-Reihe: | Foto-voltaisches Schweißen |
Markieren: | 8.0mm PV Band,0.6mm verbundenes Band,0.6mm PV Band |

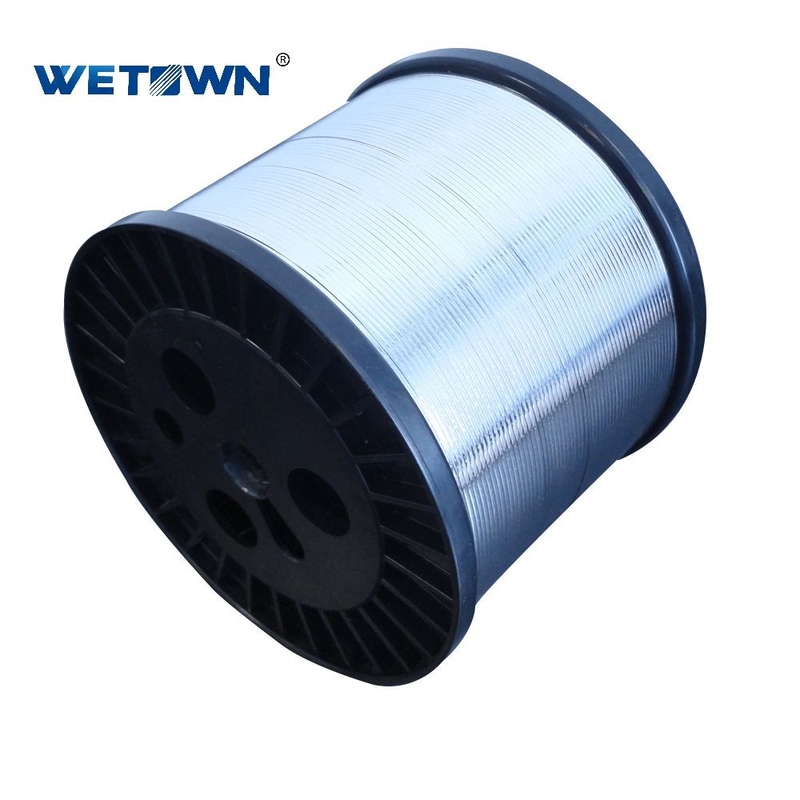

Verbundenes Band, Stärke: 0,08 - 0.6mm Breite: 0,7 - 8.0mm
Der photo-voltaische schweißende Streifen wird besonders für die Solarmodule entwickelt. Wetown stellt die Steuerung von Rohstoffen, mit dem Errichten einer kompletten Produktionskette sicher.
Verbundenes Band wird hauptsächlich zur Hauptgitterlinie der Zelle, es wird verwendet, um die Solarzelle anzuschließen gelötet, die photo-voltaischen gegenwärtigen Module zu sammeln und zu übertragen.
Warum wetown wählen Sie:
Breite (Millimeter) | Spezielles. | Kupferne niedrige Stärke | Zinnstärke | Breiten-Toleranz (Millimeter) | Dickentoleranz (Millimeter) | Streckgrenze (MPa) | Dehnfestigkeit (MPa) | Dehnbarkeit (%) | Verbiegen (mm/m) |
1,2 | 0.18x1.2 | 0,13 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 |
0.20x1.2 | 0,15 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.23x1.2 | 0,18 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.25x1.2 | 0,2 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.27x1.2 | 0,22 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
1,3 | 0.23x1.3 | 0,18 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 |
0.25x1.3 | 0,2 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.27x1.3 | 0,22 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
1,5 | 0.18x1.5 | 0,13 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 |
0.20x1.5 | 0,15 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.23x1.5 | 0,18 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.25x1.5 | 0,2 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.27x1.5 | 0,22 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
1,6 | 0.18x1.6 | 0,13 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 |
0.20x1.6 | 0,15 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.23x1.6 | 0,18 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.25x1.6 | 0,2 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.27x1.6 | 0,22 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.30x1.6 | 0,25 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
1,8 | 0.18x1.8 | 0,13 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 |
0.20x1.8 | 0,15 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.23x1.8 | 0,18 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.25x1.8 | 0,2 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.27x1.8 | 0,22 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.30x1.8 | 0,25 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
2 | 0.18x2.0 | 0,13 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 |
0.20x2.0 | 0,15 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.23x2.0 | 0,18 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.25x2.0 | 0,2 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.27x2.0 | 0,22 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 | |
0.30x2.0 | 0,25 | 0,025 | ±0.05 | ±0.01 | <90 | > 150 | >25 | <5 |
